7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable : S9011

No Image
Available

Image may not reflect selected features

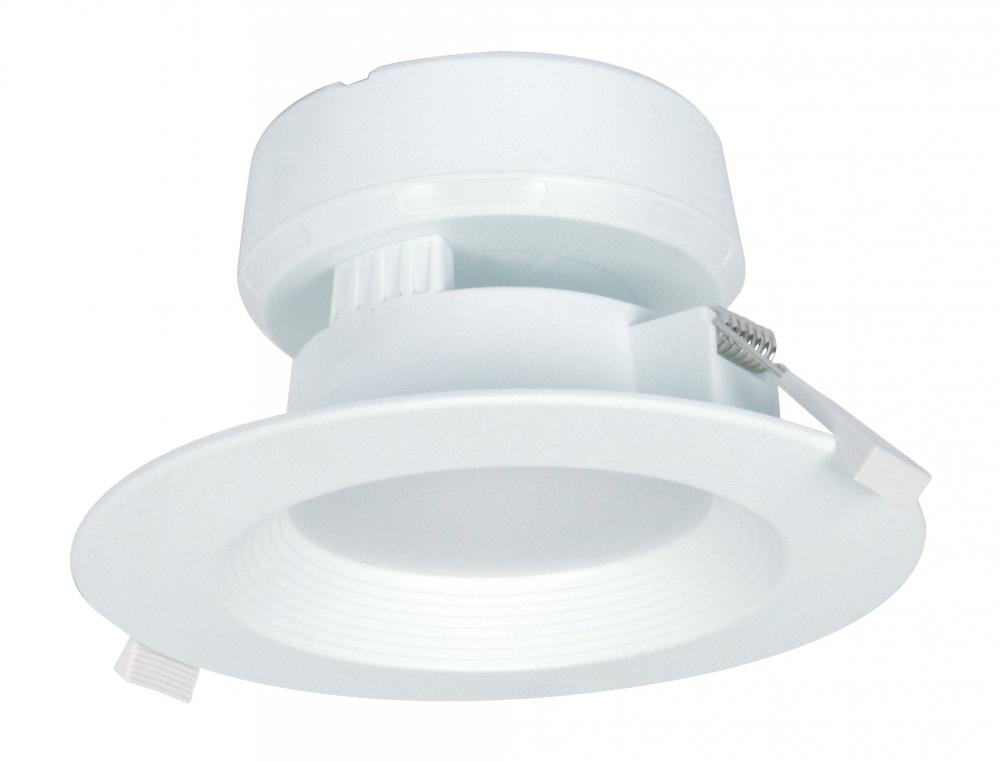

7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable (S9011) by Satco Products Inc.

7 watt LED Direct Wire Downlight; 2700K; 120 volt; Dimmable

Product Specification

Item #

S9011

Dimensions

Height: 3.25"

Width: 5.75"

Additional product details

Vendor Item #

S9011

Category

Recessed

Sub Category

Direct Wire

Style

Contemporary

Avg Rated Hours

40000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Diameter

5.75

Dimmable

Yes-Dimmable

Each Height

7.95

Each Length

6.3

Each Width

3.74

Lumens

550L

Tariff Code

8539.50.0091

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.058A

ANSI Base

Integrated

BAA Compliant

Beam Angle

100

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Non-Compliant

CEC Web Text

Non-Compliant

Ceiling Aperture

4.125 in. Cutout

Connection

Direct Wired

Country Of Origin

China

CRI

80+

Dimmable Down To

100 to 20 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Each Cube

0.1084

Each Quantity

Efficacy

78.57 LPW

FCC Compliant

Yes

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

45W

Indoor Outdoor

Indoor

JA8 Compliant

Lens Material

Polycarbonate (PC)

Material

Aluminum

Max Drywall Thickness

1-1/4 in.

Mounting Procedure

Ceiling

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cULus - Certified

SDS class

LED_Fixture

Short Description

7WLED/DW/RDL/4/27K/120V

Temperature (CCT)

2700K

Title 20 Compliant

Exempt

Title 24 Compliant

Trim Color

White

Wattage Selectable

Weight Lb.

0.84

Manufactured By

Satco Products Inc.

Finish
